172972 Festo Pneumatic Fittings

172972 on Powermatic Associates
Festo

Part#:172972

Alt. Part#:QSP10-4

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

cartridge QSP10-4 For regulator block Type of seal on screw-in stud: O-ring, Assembly position: Any, Container size: 10, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 10 bar

Product Details

  • Type code
    QSP10
  • Design
    Push-pull principle
  • Pneumatic connection 1
    Cartridge 10 mm
  • Housing material
    Brass, nickel-plated
  • Maritime classification
    See certificate
  • Pack size
    10
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Note on materials
    RoHS-compliant
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Ambient temperature
    0 °C ... 60 °C
  • Releasing ring color
    Blue
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 4 mm
  • Type of seal on screwed trunnion
    O-ring
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

172972 Related Documents

172972 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

153003 on Powermatic Associates

153003

Festo

push-in fitting QS-1/4-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

10 in stock
186117 on Powermatic Associates

186117

Festo

push-in L-fitting QSL-G1/8-6 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 4,2 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

10 in stock
564817 on Powermatic Associates

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock
153002 on Powermatic Associates

153002

Festo

push-in fitting QS-1/8-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

10 in stock
186268 on Powermatic Associates

186268

Festo

push-in L-fitting QSML-G1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 2,5 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

6 in stock
132047 on Powermatic Associates

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock

Manufacturer warranty

172972 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 172972 with other Pneumatic Fittings products

Type code

Design

Pneumatic connection 1

Housing material

Maritime classification

Pack size

Operating medium

Note on materials

Operating pressure for en...

Ambient temperature

Selected product

172972
Backordered
172972
Festo

cartridge QSP10-4 For regulator block Type of seal on screw-in stud: O-ring, Assembly position: Any,...

Type codeQSP10

DesignPush-pull principle

Pneumatic connection 1Cartridge 10 mm

Housing materialBrass, nickel-plated

Maritime classificationSee certificate

Pack size10

Operating mediumCompressed air as per ISO 85...

Note on materialsRoHS-compliant

Operating pressure for entire temperature range-0.95 bar ... 10 bar

Ambient temperature0 °C ... 60 °C

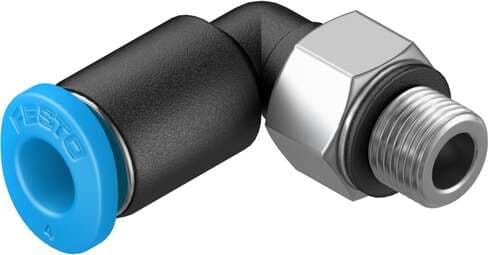

186268
6 in stock
186268
Festo

push-in L-fitting QSML-G1/8-4 360° orientable, male thread with external hexagon. Size: Mini, Nomina...

Type codeQSML

DesignPush-pull principle

Pneumatic connection 1External thread G1/8

Housing material-

Maritime classificationSee certificate

Pack size10

Operating mediumCompressed air as per ISO 85...

Note on materials-

Operating pressure for entire temperature range-0.95 bar ... 6 bar

Ambient temperature-10 °C ... 80 °C

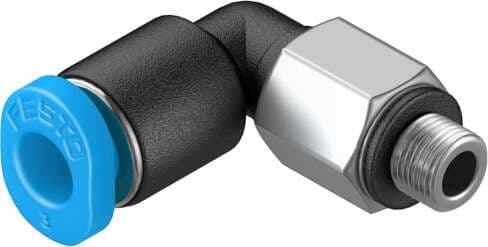

153330
