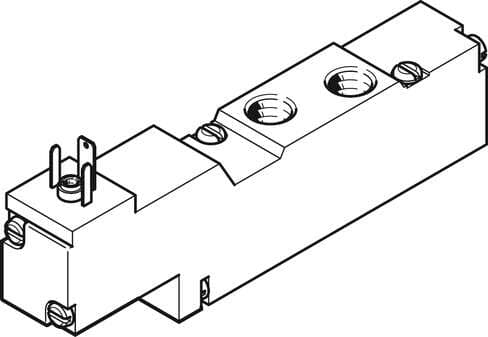

173012 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Reset method
  Pneumatic spring
• Width
  17.8 mm
• Operating voltage
  24V DC
• Design
  Piston gate valve
• Valve function
  5/2, monostable
• Standard nominal flow rate
  600 l/min
• Pneumatic working port
  G1/8
• Certification
  c UL us - Recognized (OL)
• Sealing principle
  Soft
• Mounting position
  Any
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Ambient temperature
  -5 °C ... 50 °C
• Degree of protection
  IP65
• Width dimension
  18 mm
• Type of control
  Pilot-controlled
• Symbol
  00991023
• Switching time off
  18 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82/84
Sub-base
Pneumatic connection 4
G1/8
Pneumatic connection 5
Sub-base
Actuation type
Electrical
Operating pressure
2.5 bar ... 8 bar
Nominal width
5 mm
Type code
MEBH
Pilot air supply port
Internal
Pilot pressure
2.5 bar ... 8 bar
Duty cycle
100%
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Storage temperature
-20 °C ... 40 °C
Type of mounting
On terminal strip
Pneumatic connection 1
Sub-base
Seals material
HNBR NBR
Exhaust air function
With flow control option
Flow direction
Non-reversible
b-value
0.4
Coil characteristics
24 V DC: 2.5 W
Noise level
75 dB(A)
Temperature of medium
-5 °C ... 50 °C
Electrical connection
Form C Rectangular design
Note on materials
RoHS-compliant
Manual override
Detenting via accessory
C value
2.95 l/sbar
On switching time
15 ms
Product weight
105 g
Pneumatic connection 2
G1/8
Pneumatic connection 3
Sub-base
Housing material
Die-cast aluminum
