173063 Festo Directional Control Valves
Part#:173063
Alt. Part#:MEBH-5/3E-1/8-P-B-110AC
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

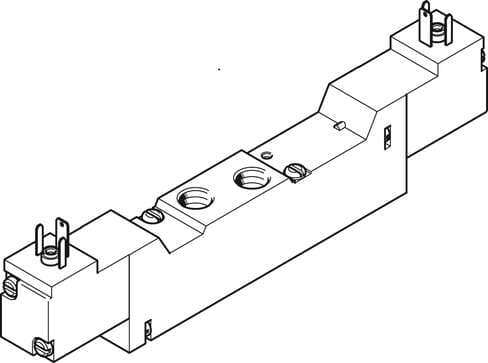

solenoid valve MEBH-5/3E-1/8-P-B-110AC With solenoid coil and manual override, without plug socket. Valve function: 5/3 exhausted, Type of actuation: electrical, Width: 17,8 mm, Standard nominal flow rate: 500 l/min, Operating pressure: 3 - 8 bar
Product Details
- Lap Overlap
- Pneumatic working port G1/8
- Operating pressure 3 bar ... 8 bar
- Nominal width 5 mm
- Width dimension 18 mm
- Flow direction Non-reversible
- C value 1 l/sbar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Storage temperature -20 °C ... 40 °C
- Noise level 75 dB(A)
- Pneumatic connection 5 Sub-base
- Type code MEBH
- Manual override Detenting via accessory
- Type of control Pilot-controlled
- Coil characteristics 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 153 g
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 1 Sub-base
- Note on materials RoHS-compliant
- Valve function 5/3, exhausted
- Operating voltage 110V AC
- Reset method Mechanical spring
- Sealing principle Soft
- Pilot pressure 3 bar ... 8 bar
- On switching time 12 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting On terminal strip
- Pneumatic connection 4 G1/8
- Seals material HNBR NBR
- Actuation type Electrical
- Standard nominal flow rate 500 l/min
- Degree of protection IP65
- Certification c UL us - Recognized (OL)
- Mounting position Any
- Pilot air supply port Internal
- Switching time off 25 ms
- CE marking (see declaration of conformity) As per EU low voltage directive
- Temperature of medium -5 °C ... 50 °C
- Pilot exhaust air port 82/84 Sub-base
- Pneumatic connection 3 Sub-base
- Width 17.8 mm
- Design Piston gate valve
- Exhaust air function With flow control option
- Symbol 00991036
- b-value 0.48
- Duty cycle 100%
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Electrical connection Form C Rectangular design
- Pneumatic connection 2 G1/8
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
