173102 Festo Directional Control Valves

173102 on Powermatic Associates
Festo

Part#:173102

Alt. Part#:MEBH-5/2-1/8-P-S-B-230AC

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

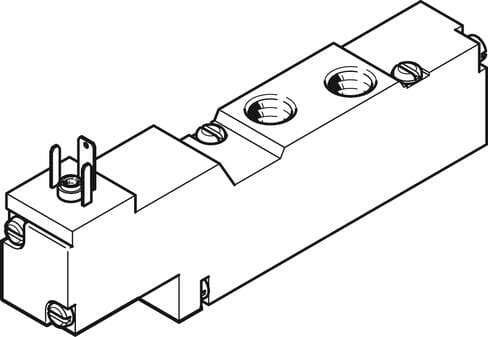

solenoid valve MEBH-5/2-1/8-P-S-B-230AC With solenoid coil and manual override, without plug socket. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 17,8 mm, Standard nominal flow rate: 600 l/min, Operating pressure: -0,9 - 10 bar

Product Details

  • Nominal width
    5 mm
  • Mounting position
    Any
  • Lap
    Overlap
  • Pneumatic working port
    G1/8
  • Reset method
    Mechanical spring
  • Type code
    MEBH
  • Pilot air supply port
    External
  • b-value
    0.36
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection 2
    G1/8
  • Seals material
    HNBR NBR
  • Certification
    c UL us - Recognized (OL)
  • Sealing principle
    Soft
  • Flow direction
    Reversible
  • C value
    2.55 l/sbar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Storage temperature
    -20 °C ... 40 °C
  • Electrical connection
    Form C Rectangular design
  • Pneumatic connection 1
    Sub-base
  • Note on materials
    RoHS-compliant
  • Actuation type
    Electrical
  • Operating pressure
    -0.9 bar ... 10 bar
  • Degree of protection
    IP65
  • Symbol
    00991025
  • On switching time
    10 ms
  • Coil characteristics
    230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
  • Vibration resistance
    Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Noise level
    75 dB(A)
  • Pilot air port 12
    M3
  • Pneumatic connection 4
    G1/8
  • Valve function
    5/2, monostable
  • Standard nominal flow rate
    600 l/min
  • Operating voltage
    230V AC
  • Exhaust air function
    With flow control option
  • Type of control
    Pilot-controlled
  • Switching time off
    28 ms
  • Temperature of medium
    -5 °C ... 50 °C
  • Product weight
    105 g
  • Pilot exhaust air port 82/84
    Sub-base
  • Housing material
    Die-cast aluminum
  • Width
    17.8 mm
  • Design
    Piston gate valve
  • Width dimension
    18 mm
  • Manual override
    Detenting via accessory
  • Pilot pressure
    2.5 bar ... 8 bar
  • Duty cycle
    100%
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Ambient temperature
    -5 °C ... 50 °C
  • Type of mounting
    On terminal strip
  • Pneumatic connection 3
    Sub-base
  • Pneumatic connection 5
    Sub-base

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
