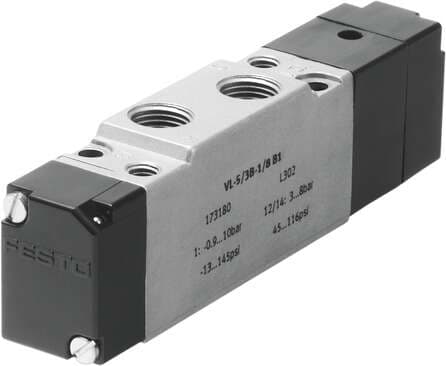

173180 Festo Directional Control Valves

Product Details

• Switching time off
  22 ms
• Lap
  Overlap
• Standard nominal flow rate
  300 l/min
• Operating pressure
  -0.9 bar ... 10 bar
• Type code
  VL
• Type of control
  Direct
• On switching time
  6 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Storage temperature
  -20 °C ... 40 °C
• Pilot air port 12
  M5
• Pneumatic connection 4
  G1/8
• Pneumatic working port
  G1/8
• Nominal width
  5 mm
• Mounting position
  Any
• Manual override
  None
• Pilot pressure
  3 bar ... 8 bar
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Product weight
  95 g
• Pneumatic connection 3
  G1/8
• Seals material
  HNBR NBR
Noise level
75 dB(A)
Design
Piston gate valve
Certification
UL - Recognized (OL)
Sealing principle
Soft
Symbol
00991022
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 50 °C
Pilot air port 14
M5
Pneumatic connection 1
G1/8
Valve function
5/3, pressurized
Width dimension
18 mm
Flow direction
Reversible
C value
3.2 l/sbar
Temperature of medium
-5 °C ... 50 °C
Pneumatic connection 2
G1/8
Note on materials
RoHS-compliant
Actuation type
Pneumatic
Width
17.8 mm
Reset method
Mechanical spring
Exhaust air function
With flow control option
Pilot air supply port
External
b-value
0.37
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
With through-hole
Pneumatic connection 5
G1/8
Housing material
Die-cast aluminum
