173846 Festo Compressed Air Preparation Units

173846 on Powermatic Associates
Festo

Part#:173846

Alt. Part#:FRC-3/8-D-O-MINI-NPT

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

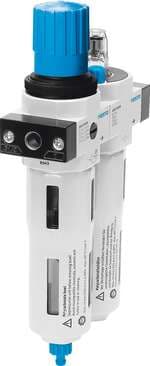

service unit FRC-3/8-D-O-MINI-NPT Filter/regulator/lubricator combination, 40 µm filter, with metal bowl guard. With manual condensate drain. Without pressure gauge. Size: Mini, Condensate drain: manual momentary-contact, Grade of filtration: 40 µm, Opera

Product Details

  • Symbol
    00991550
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    With accessories
  • Material of bowl
    PC
  • Size
    Mini
  • Grade of filtration
    40 µm
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Standard nominal flow rate
    1200 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    3/8 NPT
  • Type code
    FRC
  • Operating pressure
    1 bar ... 16 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Product weight
    600 g
  • Pneumatic connection 1
    3/8 NPT
  • Condensate drain
    Manual, non-detenting
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
