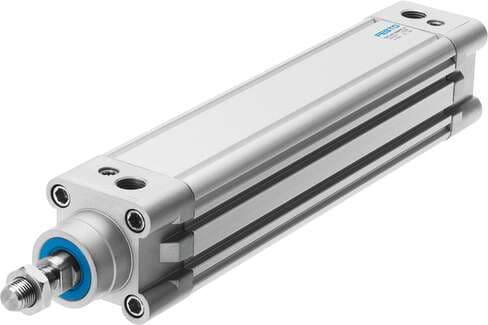

177794 Festo Pneumatic Actuators
Part#:177794
Alt. Part#:DNC-11/4"-5"-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description
profile cylinder DNC-11/4"-5"-P-A per ISO 15552, with profile cylinder barrel, with sensing option, non-adjustable cushioning. Stroke: 5 ", Piston diameter: 1 1/4", Piston rod thread: 3/8-24 UNF-2A, Based on the standard: ISO 15552 (previously also VDMA 2
Product Details
- Additional weight per 10 mm stroke 30 g
- Maritime classification See certificate
- Position sensing For proximity sensor
- Operating pressure 0.06 MPa ... 1.2 MPa
- Ambient temperature -20 °C ... 80 °C
- Type code DNC
- Piston rod thread 3/8-24 UNF-2A
- Based on norm ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
- Symbol 00991217
- Mode of operation Double-acting
- Impact energy in the end positions 0.1 J
- Basic weight with 0 mm stroke 517 g
- Seals material TPE-U(PU)
- Mounting position Any
- Variants Piston rod at one end
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Theoretical force at 6 bar, retracting 415 N
- Additional moving mass per 10 mm stroke 9 g
- Material of cylinder barrel Wrought aluminum alloy Smooth anodized
- Piston diameter 1 1/4"
- Design Piston Profile barrel
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Moving mass at 0 mm stroke 162 g
- Note on materials RoHS-compliant
- Stroke 127 mm
- Cushioning Elastic cushioning rings/pads at both ends
- Piston rod end External thread
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Theoretical force at 6 bar, advancing 483 N
- Type of mounting With internal thread With accessories
- Piston rod material High-alloy steel
- Pneumatic connection NPT1/8-27
- Cover material Die-cast aluminum Coated
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
