18527 Festo Pneumatic Components

18527 on Powermatic Associates
Festo

Part#:18527

Alt. Part#:NTSD-WD-9

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

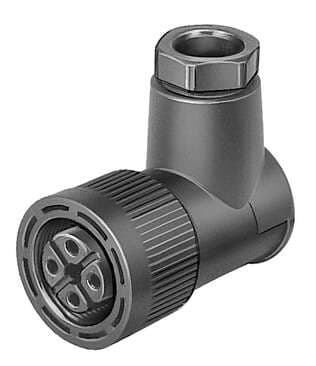

plug socket NTSD-WD-9 For valve terminals. Mounting type: With sleeve nut, Assembly position: Any, Product weight: 30 g, Electrical connection: (* 4-pin, * Plug socket angled, * Screwed terminal), Operating voltage range AC: <: 250 V

Product Details

  • Product weight
    30 g
  • Connection cross section
    1.5 mm²
  • Current rating
    16 A
  • Housing material
    PBT
  • Operating voltage range AC
    ≤ 250 V
  • Degree of protection
    IP67
  • Cable fitting
    Pg9
  • Type of mounting
    With union nut
  • Approved cable diameter
    6 mm ... 8 mm
  • Ambient temperature
    -5 °C ... 50 °C
  • Material of pin contacts
    Copper alloy Brass
  • Type code
    NTSD
  • Electrical connection
    4-pin Screw terminal
  • Storage temperature
    -20 °C ... 70 °C
  • Mounting position
    Any

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
