192311 Festo Compressed Air Preparation Units
Part#:192311
Alt. Part#:LR-1/4-D-7-I-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

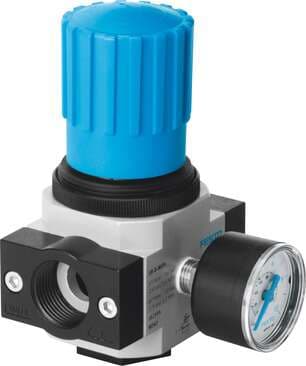

pressure regulator LR-1/4-D-7-I-MIDI With increased return exhaust, working pressure up to 7 bar. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator
Product Details
- Mounting position Any
- Maritime classification See certificate
- Size Midi
- Design Directly controlled diaphragm regulator
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Note on materials RoHS-compliant
- Actuator lock Rotary knob with detent
- Pressure gauge with pressure gauge
- Operating pressure 0 bar ... 16 bar
- Product weight 720 g
- Material of sub-base Die-cast zinc
- Series D
- Symbol 00991558
- Standard nominal flow rate 2200 l/min
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G1/4
- Housing material Die-cast zinc
- Type code LR
- Controller function Outlet pressure constant With return flow function
- Max. pressure hysteresis 0.2 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Pneumatic connection 2 G¼
- Pressure regulation range 0.5 bar ... 7 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Type of mounting Front panel mounting With accessories
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
192311 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
192311 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 192311 with other Compressed Air Preparation Units products
Mounting position
Maritime classification
Size
Design
Information on operating ...
Note on materials
Actuator lock
Pressure gauge
Operating pressure
Product weight
Selected product
192311
Festo
pressure regulator LR-1/4-D-7-I-MIDI With increased return exhaust, working pressure up to 7 bar. Si...
Mounting positionAny
Maritime classificationSee certificate
SizeMidi
DesignDirectly controlled diaphrag...
Information on operating and pilot mediaOperation with oil lubricati...
Note on materialsRoHS-compliant
Actuator lockRotary knob with detent
Pressure gaugewith pressure gauge
Operating pressure0 bar ... 16 bar
Product weight720 g
186453
Festo
pressure regulator LR-1/4-D-7-MIDI With pressure gauge, working pressure up to 7 bar. Size: Midi, Se...
Mounting positionAny
Maritime classificationSee certificate
SizeMidi
DesignDirectly controlled diaphrag...
Information on operating and pilot media-
Note on materials-
Actuator lockRotary knob with detent
Pressure gaugewith pressure gauge
Operating pressure-
Product weight-
162684
Festo

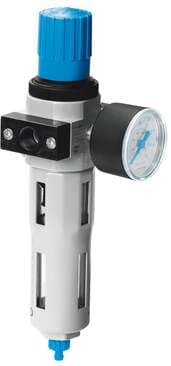

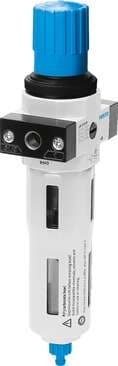

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
Mounting positionVertical +/- 5°
Maritime classificationSee certificate
SizeMini
DesignFilter regulator with pressu...
Information on operating and pilot media-
Note on materials-
Actuator lockRotary knob with detent
Pressure gaugewith pressure gauge
Operating pressure-
Product weight-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
