194762 Festo Compressed Air Preparation Units
Part#:194762
Alt. Part#:LFRS-1/2-D-7-MIDI-A
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

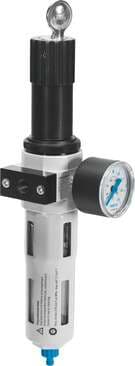

filter regulator LFRS-1/2-D-7-MIDI-A With lockable regulator head, with pressure gauge, for a nominal pressure of 12 bar, for unlubricated compressed air Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +
Product Details
- Type code LFRS
- Grade of filtration 40 µm
- Max. condensate volume 43 ml
- Standard nominal flow rate 3900 l/min
- Storage temperature -10 °C ... 60 °C
- Temperature of medium 5 °C ... 60 °C
- Pneumatic connection 2 G1/2
- Size Midi
- Mounting position Vertical +/- 5°
- Symbol 00991583
- Max. pressure hysteresis 0.2 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting Optionally: With accessories
- Housing material Die-cast zinc
- Bowl guard Metal bowl guard
- Operating pressure 2 bar ... 12 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 1140 g
- Pneumatic connection 1 G1/2
- Series D
- Design Filter regulator with pressure gauge
- Pressure regulation range 0.5 bar ... 7 bar
- Ambient temperature 5 °C ... 60 °C
- Material of bowl PC
- Actuator lock Rotary knob with integrated lock
- Condensate drain Fully automatic
- Pressure gauge with pressure gauge
- Operating medium Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
194762 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
194762 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 194762 with other Compressed Air Preparation Units products
Type code
Grade of filtration
Max. condensate volume
Standard nominal flow rat...
Storage temperature
Temperature of medium
Pneumatic connection 2
Size
Mounting position
Symbol
Selected product
194762
Festo
filter regulator LFRS-1/2-D-7-MIDI-A With lockable regulator head, with pressure gauge, for a nomina...
Type codeLFRS
Grade of filtration40 µm
Max. condensate volume43 ml
Standard nominal flow rate3900 l/min
Storage temperature-10 °C ... 60 °C
Temperature of medium5 °C ... 60 °C
Pneumatic connection 2G1/2
SizeMidi
Mounting positionVertical +/- 5°
Symbol00991583
162684
Festo
filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
Type codeLFR
Grade of filtration40 µm
Max. condensate volume22 ml
Standard nominal flow rate-
Storage temperature-
Temperature of medium-
Pneumatic connection 2-
SizeMini
Mounting positionVertical +/- 5°
Symbol00991583
159637
Festo
filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
Type codeLFR
Grade of filtration40 µm
Max. condensate volume80 ml
Standard nominal flow rate-
Storage temperature-
Temperature of medium-
Pneumatic connection 2-
SizeMaxi
Mounting positionVertical +/- 5°
Symbol00991587
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
