194778 Festo Compressed Air Preparation Units
Part#:194778
Alt. Part#:LFRS-3/4-D-5M-MIDI-A
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

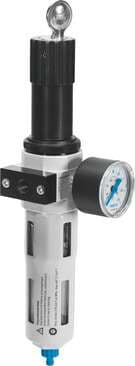

filter regulator LFRS-3/4-D-5M-MIDI-A With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°
Product Details
- Actuator lock Rotary knob with integrated lock
- Max. condensate volume 43 ml
- Pressure gauge with pressure gauge
- Pressure regulation range 0.5 bar ... 12 bar
- Storage temperature -10 °C ... 60 °C
- Temperature of medium 5 °C ... 60 °C
- Pneumatic connection 1 G3/4
- Type code LFRS
- Grade of filtration 5 µm
- Max. pressure hysteresis 0.2 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature 5 °C ... 60 °C
- Pneumatic connection 2 G3/4
- Series D
- Design Filter regulator with pressure gauge
- Bowl guard Metal bowl guard
- Operating pressure 2 bar ... 12 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
- Note on materials RoHS-compliant
- Material of bowl PC
- Size Midi
- Mounting position Vertical +/- 5°
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 1140 g
- Housing material Die-cast zinc
- Condensate drain Fully automatic
- Symbol 00991583
- Standard nominal flow rate 2600 l/min
- Type of mounting Optionally: With accessories
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
