194812 Festo Compressed Air Preparation Units
Part#:194812
Alt. Part#:LFRS-1-D-5M-MAXI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

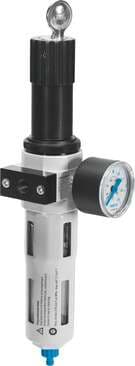

filter regulator LFRS-1-D-5M-MAXI With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size: Maxi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Gr
Product Details
- Size Maxi
- Mounting position Vertical +/- 5°
- Standard nominal flow rate 8000 l/min
- Ambient temperature -10 °C ... 60 °C
- Housing material Die-cast zinc
- Actuator lock Rotary knob with integrated lock
- Design Filter regulator with pressure gauge
- Pressure regulation range 0.5 bar ... 12 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Product weight 1570 g
- Note on materials RoHS-compliant
- Type code LFRS
- Grade of filtration 5 µm
- Bowl guard Metal bowl guard
- Pressure gauge with pressure gauge
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
- Pneumatic connection 1 G1
- Material of bowl PC
- Max. condensate volume 80 ml
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Storage temperature -10 °C ... 60 °C
- Pneumatic connection 2 G1
- Series D
- Condensate drain Manually rotating
- Symbol 00991589
- Operating pressure 1 bar ... 16 bar
- Max. pressure hysteresis 0.4 bar
- Temperature of medium -10 °C ... 60 °C
- Type of mounting Optionally: With accessories
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
