194860 Festo Compressed Air Preparation Units

194860 on Powermatic Associates
Festo

Part#:194860

Alt. Part#:FRCS-1/8-D-5M-MINI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

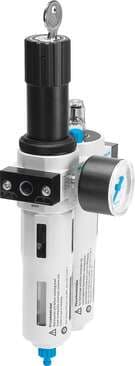

service unit FRCS-1/8-D-5M-MINI Filter/pressure regulator/lubricator combination, D series, with lockable regulator head. Size: Mini, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Condensate drain: manual

Product Details

  • Bowl guard
    Metal bowl guard
  • Symbol
    00991549
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/8
  • Max. condensate volume
    22 ml
  • Max. pressure hysteresis
    0.2 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 2
    G1/8
  • Type code
    FRCS
  • Design
    Filter regulator with pressure gauge Proportional standard oil mist lubricator
  • Pressure gauge
    with pressure gauge
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:-] Inert gas
  • Product weight
    760 g
  • Note on materials
    RoHS-compliant
  • Size
    Mini
  • Condensate drain
    Manually rotating
  • Grade of filtration
    5 µm
  • Operating pressure
    1 bar ... 16 bar
  • Standard nominal flow rate
    600 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc
  • Series
    D
  • Mounting position
    Vertical +/- 5°
  • Actuator lock
    Rotary knob with integrated lock
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Type of mounting
    Line installation With accessories
  • Material of bowl
    PC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
