194896 Festo Compressed Air Preparation Units
Part#:194896
Alt. Part#:FRCS-1/4-D-5M-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

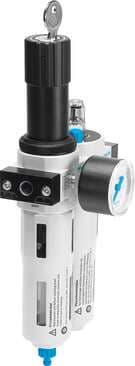

service unit FRCS-1/4-D-5M-MIDI Filter/pressure regulator/lubricator combination, D series, with lockable regulator head. Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Condensate drain: manual
Product Details
- Size Midi
- Condensate drain Manually rotating
- Bowl guard Metal bowl guard
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Temperature of medium -10 °C ... 60 °C
- Material of bowl PC
- Series D
- Max. condensate volume 43 ml
- Pressure gauge with pressure gauge
- Standard nominal flow rate 1300 l/min
- Ambient temperature -10 °C ... 60 °C
- Note on materials RoHS-compliant
- Mounting position Vertical +/- 5°
- Pressure regulation range 0.5 bar ... 12 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 2 G¼
- Type code FRCS
- Design Filter regulator with pressure gauge Proportional standard oil mist lubricator
- Symbol 00991549
- Max. pressure hysteresis 0.2 bar
- Product weight 1680 g
- Housing material Die-cast zinc
- Actuator lock Rotary knob with integrated lock
- Grade of filtration 5 µm
- Operating pressure 1 bar ... 16 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [6:8:-] Inert gas
- Type of mounting Line installation With accessories
- Pneumatic connection 1 G1/4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
194896 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
194896 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 194896 with other Compressed Air Preparation Units products
Size
Condensate drain
Bowl guard
Operating medium
Temperature of medium
Material of bowl
Series
Max. condensate volume
Pressure gauge
Standard nominal flow rat...
Selected product
194896
Festo
service unit FRCS-1/4-D-5M-MIDI Filter/pressure regulator/lubricator combination, D series, with loc...
SizeMidi
Condensate drainManually rotating
Bowl guardMetal bowl guard
Operating mediumCompressed air as per ISO 85...
Temperature of medium-10 °C ... 60 °C
Material of bowlPC
SeriesD
Max. condensate volume43 ml
Pressure gaugewith pressure gauge
Standard nominal flow rate1300 l/min
531229
Festo
filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure ga...
Size4
Condensate drainManually rotating
Bowl guardPlastic bowl guard
Operating medium-
Temperature of medium-
Material of bowl-
SeriesMS
Max. condensate volume19 ml
Pressure gaugewith pressure gauge
Standard nominal flow rate-
162684
Festo

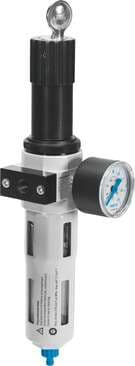

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
SizeMini
Condensate drainFully automatic
Bowl guardMetal bowl guard
Operating medium-
Temperature of medium-
Material of bowl-
SeriesD
Max. condensate volume22 ml
Pressure gaugewith pressure gauge
Standard nominal flow rate-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
