195030 Festo Compressed Air Preparation Units
Part#:195030
Alt. Part#:LFRS-1/4-D-MINI-KE
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

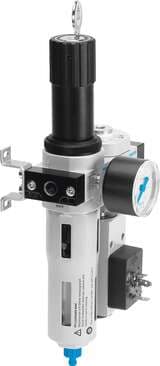

service unit LFRS-1/4-D-MINI-KE With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size: Mini, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Grad
Product Details
- Grade of filtration 40 µm
- Symbol 00991525
- Actuator lock Rotary knob with integrated lock
- Max. condensate volume 22 ml
- Design Branching module Filter regulator with pressure gauge
- Operating pressure 1 bar ... 16 bar
- Max. pressure hysteresis 0.15 bar
- Type of mounting Optionally: With accessories
- Pressure regulation range 0.5 bar ... 12 bar
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 G1/4
- Size Mini
- Type code LFRS
- Mounting position Vertical +/- 5°
- Condensate drain Manually rotating
- Standard nominal flow rate 1140 l/min
- Pneumatic connection 2 G¼
- Material of bowl PC
- Series D
- Bowl guard Metal bowl guard
- Pressure gauge with pressure gauge
- Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Housing material Die-cast zinc
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 1100 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
