195037 Festo Compressed Air Preparation Units
Part#:195037
Alt. Part#:LFRS-1/4-D-MIDI-KA-A
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

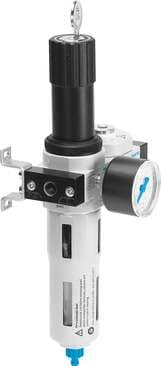

service unit LFRS-1/4-D-MIDI-KA-A With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Gr
Product Details
- Size Midi
- Max. condensate volume 43 ml
- Standard nominal flow rate 1850 l/min
- Product weight 2040 g
- Material of bowl PC
- Type code LFRS
- Mounting position Vertical +/- 5°
- Bowl guard Metal bowl guard
- Pressure regulation range 0.5 bar ... 12 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 2 G¼
- Series D
- Condensate drain Fully automatic
- Symbol 00991552
- Operating pressure 2 bar ... 12 bar
- Ambient temperature -10 °C ... 60 °C
- Housing material Die-cast zinc
- Design Branching module Filter regulator with pressure gauge
- Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
- Pneumatic connection 1 G1/4
- Actuator lock Rotary knob with integrated lock
- Grade of filtration 40 µm
- Pressure gauge with pressure gauge
- Max. pressure hysteresis 0.25 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
- Type of mounting Optionally: With accessories
