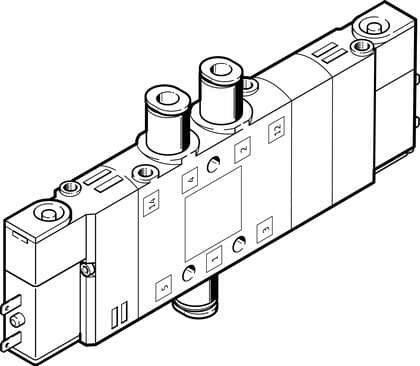

196904 Festo Directional Control Valves

Product Details

• Valve function
  5/3, closed
• Actuation type
  Electrical
• Pneumatic working port
  QS-8
• Lap
  Overlap
• Design
  Piston gate valve
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• Coil characteristics
  24 V DC: 1.28 W
• Electrical connection
  2-pin
• Pilot air port 12
  M3
• Pneumatic connection 5
  G1/8
• Housing material
  Die-cast aluminum
• Operating voltage
  24V DC
• Type code
  CPE14
• Mounting position
  Any
• Pilot air supply port
  Internal
• Switching time off
  42 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Permissible voltage fluctuations
  -15 % / +10 %
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
With through-hole
Pneumatic connection 4
QS-8
Maritime classification
See certificate
Standard nominal flow rate
720 l/min
Operating pressure
3 bar ... 8 bar
Degree of protection
IP65 as per IEC 60529
Nominal width
6 mm
Symbol
00991033
On switching time
20 ms
Max. negative test pulse on 1 signal
900 µs
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 2
QS-8
Note on materials
RoHS-compliant
Width
14 mm
Reset method
Mechanical spring
Manual override
Detenting via accessory Non-detenting
Valve position ID
Label holder
Duty cycle
100% in combination with holding current reduction
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 84
M3
Pilot air port 14
M3
Seals material
NBR
Exhaust air function
With flow control option
Certification
c UL us - Recognized (OL)
Type of control
Pilot-controlled
Max. positive test pulse with 0 signal
1200 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot exhaust air port 82
M3
Pneumatic connection 1
QS-8
Pneumatic connection 3
G1/8
