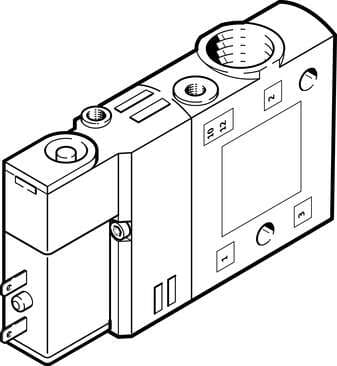

196929 Festo Directional Control Valves

Product Details

• Coil characteristics
  24 V DC: 1.28 W
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Type of mounting
  With through-hole
• Pneumatic connection 1
  G1/8
• Note on materials
  RoHS-compliant
• Maritime classification
  See certificate
• Standard nominal flow rate
  900 l/min
• Design
  Piston gate valve
• Certification
  c UL us - Recognized (OL)
• Mounting position
  Any
• Valve position ID
  Label holder
• Max. positive test pulse with 0 signal
  1200 µs
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Temperature of medium
  -5 °C ... 50 °C
• Pilot exhaust air port 82
  M3
• Electrical connection
  2-pin
• Actuation type
  Electrical
• Pneumatic working port
  G1/8
• Operating pressure
  2.5 bar ... 8 bar
• Nominal width
  6 mm
Manual override
Detenting via accessory Non-detenting
Flow direction
Non-reversible
On switching time
16 ms
Max. negative test pulse on 1 signal
900 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
60 g
Pilot air port 12
M3
Seals material
NBR
Valve function
3/2, closed, monostable
Width
14 mm
Reset method
Pneumatic spring
Type code
CPE14
Type of control
Pilot-controlled
Symbol
00991655
Permissible voltage fluctuations
-15 % / +10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 3
G1/8
Housing material
Die-cast aluminum
Lap
Overlap
Operating voltage
24V DC
Degree of protection
IP65 as per IEC 60529
Sealing principle
Soft
Pilot air supply port
Internal
Duty cycle
100% in combination with holding current reduction
Switching time off
27 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 2
G1/8
