197034 Festo Directional Control Valves
Part#:197034
Alt. Part#:MHP1-M5H-3/2O-M3-PI
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

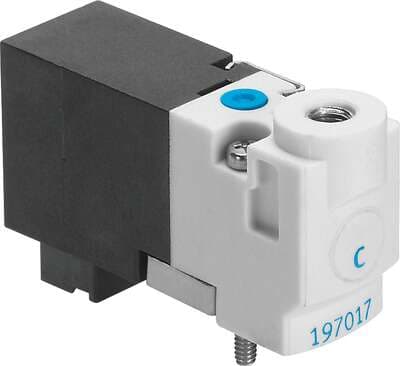

solenoid valve MHP1-M5H-3/2O-M3-PI Semi in-line valve for individual and manifold mounting, very compact, with plug connector on bottom (plug-in) Valve function: 3/2 open, monostable, Type of actuation: electrical, Width: 10 mm, Standard nominal flow rate
Product Details
- Valve function 3/2, open, monostable
- Width 10 mm
- Operating pressure 0 bar ... 6 bar
- Degree of protection IP40
- Nominal width 0.7 mm
- Flow direction Non-reversible
- Type of control Direct
- Coil characteristics 12 V DC: 1.0 W
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Storage temperature -20 °C ... 60 °C
- Pneumatic connection 11 Sub-base
- Lap Underlap
- Standard nominal flow rate 10 l/min
- Type code MHP1
- Manual override Non-detenting
- Symbol 00991322
- Electrical power consumption 1 W
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Plug
- Pneumatic connection 2 M3
- Housing material PA-reinforced PPS-reinforced
- Operating voltage 12V DC
- Width dimension 10 mm
- Note on forced dynamization Switching frequency at least once a week
- On switching time 4 ms
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -5 °C ... 40 °C
- Pneumatic connection 33 Sub-base
- Note on materials Free of copper and PTFE RoHS-compliant
- Certificate issuing authority UL MH19482
- Design Poppet valve with return spring
- Certification c UL us - Recognized (OL)
- Sealing principle Soft
- Valve position ID Label
- Max. switching frequency 20 Hz
- Permissible voltage fluctuations +/- 10 %
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Type of mounting On sub-base With through-hole
- Actuation type Electrical
- Pneumatic working port M3
- Reset method Mechanical spring
- Exhaust air function With flow control option
- Mounting position Any
- Switching time off 4 ms
- Duty cycle 100%
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium -5 °C ... 40 °C
- Product weight 10 g
- Seals material FPM NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
