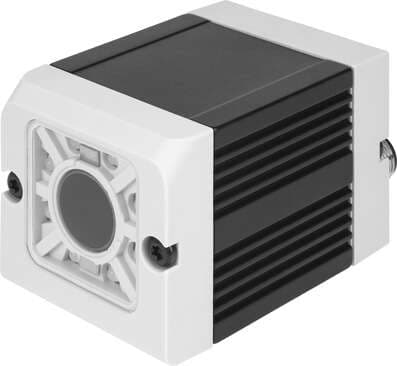

2930234 Festo Electronic Components

Product Details

• Wavelength
  640 nm
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Working distance
  6 mm - infinite
• Lens attachment
  Integrated optics
• Sensor resolution
  736 x 480 pixels (WideVGA)
• Information on Ethernet, connection technology
  Socket 4-pin
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Focus setting
  With adjusting screw
• Frame rate (full image)
  50 fps
• Ethernet, supported protocols
  Ethernet/IP TCP/IP
• Electrical connection
  12-pin Plug
• Max. output current
  50 mA
• Permissible voltage fluctuations
  -25 %/+10 %
• Product weight
  160 g
• Type code
  SBSI
• Vision sensor version
  Code reader
• Focal length
  6 mm
• Type of light
  Red LED
• Typical cycle time
  1D bar code: 30 ms 2D code: 40 ms
• Degree of protection
  IP67
Note on materials
RoHS-compliant
KC characters
KC EMC
Field of view
min. 5 x 4 mm
Lighting type
Integrated
Max. number of test criteria/detectors
2
Sensor type
Monochrome
Max. no. of inspection programs/jobs
8
Ethernet, data transmission speed
100 Mbit/s
Number of digital inputs
2
Switching output
PNP/NPN switchable
Switching level
Signal 0: <= 3 V Signal 1: >= UB - 1 V
Function of detectors/characteristics
EAN PDF 417
Serial interface, type
RS 232 / RS 422
Number of selectable digital inputs/outputs
2
Short-circuit protection
For all electrical connections
Max. current consumption
550 mA
Ambient temperature
0 °C ... 50 °C
Cover material
ABS-reinforced
Serial interface, connection technology
Plug 5-pin
Number of digital outputs
4
Switching input
PNP/NPN switchable
Nominal operating voltage DC
24 V
Storage temperature
-20 °C ... 60 °C
Current consumption with load-free outputs
200 mA
Dimensions W x L x H
45 mm x 45 mm x 76.7 mm
Housing material
Wrought aluminum alloy, anodized
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Vibration resistance
as per EN 60068-2-6
