34498 Festo Actuator Accessories
Part#:34498
Alt. Part#:FENG-32-500-KF
Manufacturer:Festo
Category:Actuator Accessories
Product Lifecycle:Active
Product description

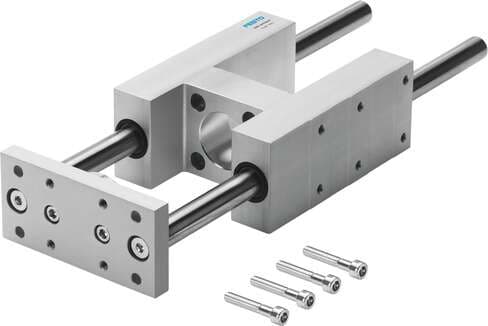

guide unit FENG-32-500-KF with recirculating ball bearing guide, serves for protection against rotation, provides a high accuracy of guidance. Size: 32, Stroke: 500 mm, Assembly position: Any, Guide: Recirculating ball bearing guide, Design structure: Gui
Product Details
- Size 32
- Mounting position Any
- Design Guide
- Max. force Fy 750 N
- Max. force Fz 750 N
- Max. torque My 34 Nm
- Type code FENG
- Max. force Fz static 1020 N
- Max. torque Mz 34 Nm
- Product weight 2430 g
- Housing material Wrought aluminum alloy, anodized
- Guide Recirculating ball bearing guide
- Max. force Fy static 1020 N
- Max. static moment Mx 38 Nm
- Max. static moment Mz 46 Nm
- Material of guide component Tempered steel
- Stroke 500 mm
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Max. torque Mx 28 Nm
- Ambient temperature -20 °C ... 80 °C
- Max. static moment My 46 Nm
- Displacement force 15 N
- Note on materials Free of copper and PTFE RoHS-compliant
- Type of mounting With internal thread
- Material of yoke plate Wrought aluminum alloy, anodized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
