34922 Festo Directional Control Valves
Part#:34922
Alt. Part#:VLX-2-1/4-MS-NPT
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
pneumatic valve VLX-2-1/4-MS-NPT 2/2-way function, pneumatically actuated, brass version. Design structure: Diaphragm valve, Type of actuation: pneumatic, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Design Diaphragm valve
- Mounting position Any
- Exhaust air function Without flow control option
- Symbol 00991371
- Standard nominal flow rate 2400 l/min
- Material number of screw 1.4301
- Type code VLX
- Valve function 2/2, closed, monostable
- Reset method Pneumatic spring
- Temperature of medium -10 °C ... 80 °C
- Product weight 490 g
- Medium pressure 1 bar ... 10 bar
- Auxiliary pilot air port 12 M5
- Type of control Pilot-controlled
- Ambient temperature -10 °C ... 60 °C
- Actuation type Pneumatic
- Fitting connection NPT1/4
- Nominal width 13 mm
- Flow direction Non-reversible
- Medium Filtered compressed air, 200 µm filter mesh
- Material of screws High-alloy stainless steel
- Sealing principle Soft
- Type of mounting Line installation
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Housing material Brass
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
34922 Related Documents
Similar products from: Festo Directional Control Valves
Manufacturer warranty
34922 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 34922 with other Directional Control Valves products
Design
Mounting position
Exhaust air function
Symbol
Standard nominal flow rat...
Material number of screw
Type code
Valve function
Reset method
Temperature of medium
Selected product
34922
Festo
pneumatic valve VLX-2-1/4-MS-NPT 2/2-way function, pneumatically actuated, brass version. Design str...
DesignDiaphragm valve
Mounting positionAny
Exhaust air functionWithout flow control option
Symbol00991371
Standard nominal flow rate2400 l/min
Material number of screw1.4301
Type codeVLX
Valve function2/2, closed, monostable
Reset methodPneumatic spring
Temperature of medium-10 °C ... 80 °C
8043214
Festo

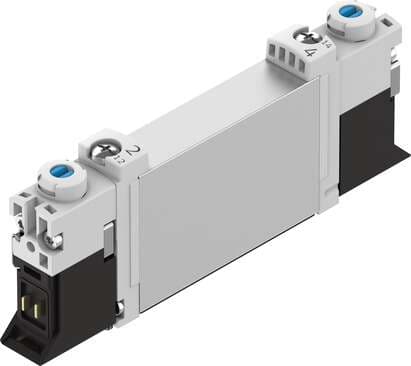

solenoid valve VUVS-LK20-M52-AD-G18-1C1-S Valve function: 5/2 monostable, Type of actuation: electri...
