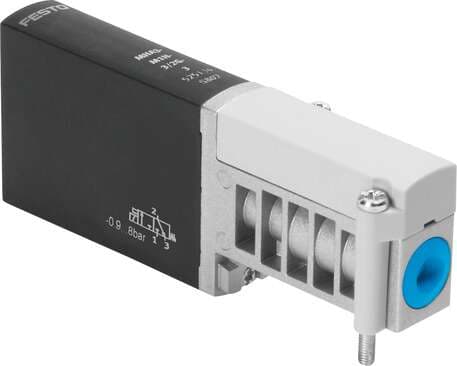

525134 Festo Directional Control Valves

Product Details

• Degree of protection
  IP65
• Sealing principle
  Soft
• Manual override
  Non-detenting
• On switching time
  8.3 ms
• Permissible voltage fluctuations
  +/- 10 %
• Ambient temperature
  -5 °C ... 40 °C
• Pneumatic connection 1
  Sub-base
• Material of screws
  Steel Galvanized
• Actuation type
  Electrical
• Width
  14 mm
• Operating pressure
  -0.9 bar ... 8 bar
• Certification
  c UL us - Recognized (OL)
• Type code
  MH3
• Symbol
  00991308
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Type of mounting
  On PR rail
• Seals material
  HNBR NBR
• Valve function
  3/2, closed, monostable
• Pneumatic working port
  Sub-base
Reset method
Mechanical spring
Type of control
Direct
Operating pressure, reversible
-0.9 bar ... 1 bar
Product weight
120 g
Pneumatic connection 2
Sub-base
Pneumatic connection 3
Sub-base
Note on materials
Free of copper and PTFE RoHS-compliant
Lap
Underlap
Standard nominal flow rate
200 l/min
Design
Pressure-relieved poppet valve
Nominal width
3 mm
Exhaust air function
With flow control option
Flow direction
Reversible with restrictions
Switching time off
4.5 ms
Coil characteristics
24 V DC: 3.7 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
2-pin Plug
Operating voltage
24V DC
Width dimension
19 mm
Mounting position
Any
Max. switching frequency
130 Hz
Duty cycle
100%
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 40 °C
Housing material
Die-cast zinc Coated
