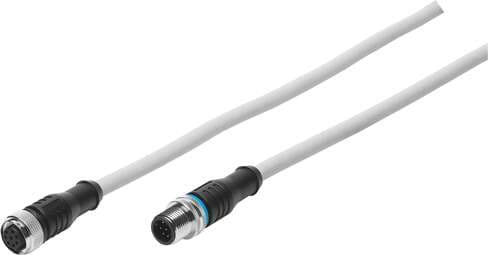

525617 Festo Pneumatic Components

Product Details

• Cable designation
  Without label holder
• Electrical connection 1, cable outlet
  Straight
• Electrical connection for input 1, connection pattern
  00992265
• Material of screw-type lock
  Brass, chrome-plated Brass, nickel-plated
• Contact durability
  50
• Electrical connection 1, function
  Field device end
• Electrical connection 2, connection type
  Plug
• Electrical connection 2, cable outlet
  Straight
• Electrical connection 2, type of mounting
  Screw-type lock
• Nominal operating voltage DC
  30 V
• Connector cable test conditions
  Test conditions on request
• Bending radius, fixed cable installation
  ≥ 32 mm
• Cable design
  8 x 0.25 mm² Shielded
• Degree of protection
  IP67
• Ambient temperature with flexible cable installation
  0 °C ... 80 °C
• Color cable sheath
  Gray
• Insulating sheath material
  PP TPE-U(PUR)
• Electrical connection 1, design
  Round
• Electrical connection 1, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 2, function
  Control side
Electrical connection 2, number of pins/wires
8
Electrical connection 2, connection pattern
00992264
Current rating at 40°C
2 A
Cable diameter
6.2 mm
Note on degree of protection
In mounted state
Contamination level
3
Product weight
140 g
Electrical connection 1, occupied pins/wires
8
Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 2, connection technology
M12x1 A-coded as per EN 61076-2-101
DC operating voltage range
0 V ... 30 V
Surge resistance
0.8 kV
Cable length
2 m
Cable diameter tolerance
± 0.2 mm
CE marking (see declaration of conformity)
As per EU RoHS directive
Note on materials
RoHS-compliant
Material of cable sheath
TPE-U(PUR)
Material of pin contacts
Brass, nickel-plated and gold-plated
Type code
KM12
Electrical connection 1, connection type
Socket
Electrical connection 1, number of pins/wires
8
Electrical connection 2, design
Round
Electrical connection 2, occupied pins/wires
8
Operating voltage range AC
0 V ... 30 V
Cable characteristic
Standard
Bending radius, flexible cable installation
≥ 64 mm
Nominal conductor cross section
0.25 mm²
Ambient temperature
-25 °C ... 80 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Seals material
NBR
