526069 Festo Compressed Air Preparation Accessories

526069 on Powermatic Associates
Festo

Part#:526069

Alt. Part#:MS4-AGB

Manufacturer:Festo

Category:Compressed Air Preparation Accessories

Product Lifecycle:Active

Product description

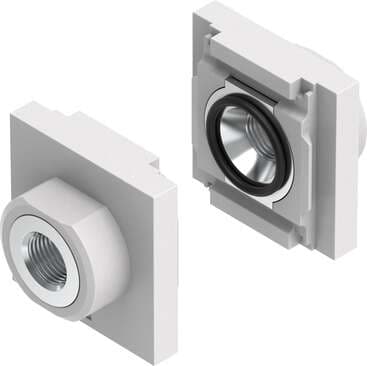

Sub-base-SET MS4-AGB From the MS series, with G thread. Size: 4, Series: MS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Medium temperature: -10 - 60 °C, Product weight: 128 g

Product Details

  • Type code
    MS4-AGB
  • Temperature of medium
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Pneumatic connection 2
    G¼
  • Series
    MS
  • Product weight
    128 g
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Size
    4
  • Material of sub-base
    Die-cast aluminum
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 1
    G1/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

526069 Related Documents

526069 DataSheet.pdf
