531640 Festo Pneumatic Fittings
Part#:531640
Alt. Part#:KD4-CK-9
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

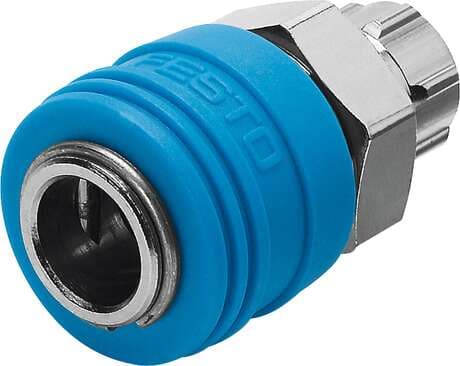

coupling socket KD4-CK-9 Self-closing Nominal size: 7,4 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 1017 l/min, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operatin
Product Details
- Standard nominal flow rate 1017 l/min
- Ambient temperature -10 °C ... 60 °C
- Information on operating and pilot media Operation with oil lubrication possible
- Operating pressure for entire temperature range -0.95 bar ... 12 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Pneumatic connection 1 CK-9
- Type code KD4
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Note on materials RoHS-compliant
- Nominal width 7.4 mm
- Product weight 71 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
