531683 Festo Pneumatic Fittings
Part#:531683
Alt. Part#:KS4-CK-9
Manufacturer:Festo
Category:Pneumatic Fittings
Product Lifecycle:Active
Product description

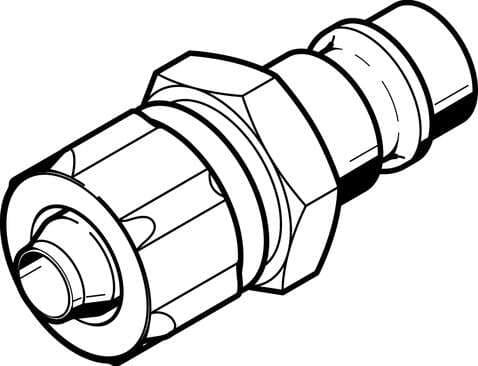

quick coupling plug KS4-CK-9 For self-closing quick coupling connectors. Nominal size: 7,4 mm, Operating pressure complete temperature range: -0,95 - 12 bar, Standard nominal flow rate: 1017 l/min, Operating medium: Compressed air in accordance with ISO85
Product Details
- Standard nominal flow rate 1017 l/min
- Ambient temperature -10 °C ... 60 °C
- Nominal width 7.4 mm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Operating pressure for entire temperature range -0.95 bar ... 12 bar
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Pneumatic connection 1 CK-9
- Type code KS4
- Product weight 26 g
- Note on materials RoHS-compliant
- Information on operating and pilot media Operation with oil lubrication possible
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
