531711 Festo Pneumatic Components

531711 on Powermatic Associates
Festo

Part#:531711

Alt. Part#:MS6N-LOE-1/2-R

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

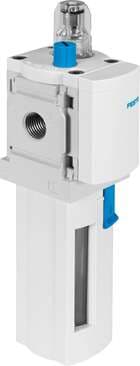

lubricator MS6N-LOE-1/2-R Plastic bowl with plastic bowl guard, direction of flow: from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 75 cm3

Product Details

  • Size
    6
  • Bowl guard
    Plastic bowl guard
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Oil viscosity
    ISO VG 32
  • Type of mounting
    Optionally: With accessories
  • For use in the food industry
    See supplementary material information
  • Design
    Proportional standard oil mist lubricator
  • Minimum flow rate for lubricator function
    50 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    1/2 NPT
  • Series
    MS
  • Max. oil capacity
    75 cm³
  • Standard nominal flow rate
    7200 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Note on materials
    RoHS-compliant
  • Material of bowl
    PC
  • Mounting position
    Vertical +/- 5°
  • Operating pressure
    1 bar ... 16 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Housing material
    Die-cast aluminum
  • Type code
    MS6N-LOE
  • Symbol
    00991532
  • Storage temperature
    -10 °C ... 60 °C
  • Product weight
    600 g
  • Pneumatic connection 1
    1/2 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

531711 Related Documents

531711 DataSheet.pdf
