532811 Festo Compressed Air Preparation Units

532811 on Powermatic Associates
Festo

Part#:532811

Alt. Part#:LFMB-D-MINI-DA

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

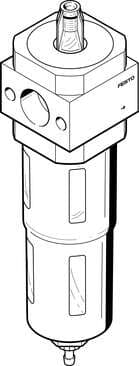

fine filter LFMB-D-MINI-DA Without threaded connection plates with FRB threaded pin. 1 µm filter cartridge, with metal bowl guard, with differential pressure indicator, manual condensate drain. Series: D, Size: Mini, Design structure: Fibre filter, Grade

Product Details

  • Size
    Mini
  • Symbol
    00991543
  • Max. condensate volume
    22 ml
  • Temperature of medium
    1.5 °C ... 60 °C
  • Mounting position
    Vertical +/- 5°
  • Grade of filtration
    1 µm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Storage temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Pneumatic connection 1
    Sub-base
  • Compressed air filter material
    Borosilicate fiber
  • Series
    D
  • Operating pressure
    1 bar ... 16 bar
  • Bowl guard
    Metal bowl guard
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    Sub-base
  • Material of bowl
    PC
  • Type code
    LFMB
  • Condensate drain
    Manually rotating
  • Filter efficiency
    99.99 %
  • Residual oil content
    0.5 mg/m³
  • Housing material
    Die-cast zinc
  • Product weight
    283 g
  • Design
    Fiber filter
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [5:7:3] Inert gas
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Differential pressure display
    Visual display
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
