532818 Festo Compressed Air Preparation Units

532818 on Powermatic Associates
Festo

Part#:532818

Alt. Part#:LFMB-1/4-D-MINI-DA

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

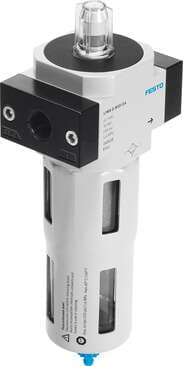

fine filter LFMB-1/4-D-MINI-DA 1 µm filter cartridge, with metal bowl guard, with differential pressure indicator, manual condensate drain. Series: D, Size: Maxi, Design structure: Fibre filter, Grade of filtration: 1 µm, Condensate drain: manual rotary

Product Details

  • Type code
    LFMB
  • Condensate drain
    Manually rotating
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [5:7:3] Inert gas
  • Max. condensate volume
    22 ml
  • Temperature of medium
    1.5 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Compressed air filter material
    Borosilicate fiber
  • Series
    D
  • Design
    Fiber filter
  • Symbol
    00991543
  • Min. standard flow rate for air quality class
    150 l/min
  • Filter efficiency
    99.99 %
  • Differential pressure display
    Visual display
  • Housing material
    Die-cast zinc
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Operating pressure
    1 bar ... 16 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/4
  • Product weight
    368 g
  • Size
    Maxi
  • Grade of filtration
    1 µm
  • Max. standard flow rate for air quality class
    650 l/min
  • Bowl guard
    Metal bowl guard
  • Residual oil content
    0.5 mg/m³
  • Mounting position
    Vertical +/- 5°
  • Material of bowl
    PC
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G¼
  • Note on materials
    Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
