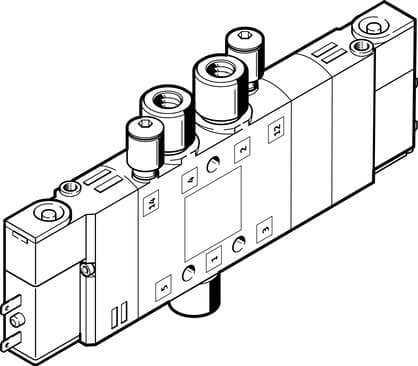

533154 Festo Directional Control Valves
Part#:533154
Alt. Part#:CPE10-M1BH-5/3GS-QS6-B
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve CPE10-M1BH-5/3GS-QS6-B High component density Valve function: 5/3 closed, Type of actuation: electrical, Width: 10 mm, Standard nominal flow rate: 300 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Actuation type Electrical
- Pneumatic working port QS-6
- Nominal width 4 mm
- Type of control Pilot-controlled
- Valve position ID Label holder
- Permissible voltage fluctuations -15 % / +10 %
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot exhaust air port 84 M3
- Pneumatic connection 1 QS-6
- Pneumatic connection 5 M7
- Valve function 5/3, closed
- Lap Overlap
- Operating voltage 24V DC
- Certification c UL us - Recognized (OL)
- Manual override Detenting via accessory Non-detenting
- Pilot air supply port External
- Switching time off 20 ms
- Max. negative test pulse on 1 signal 900 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot exhaust air port 82 M3
- Pilot air port 14 M3
- Pneumatic connection 3 M7
- Width 10 mm
- Degree of protection IP65 as per IEC 60529
- Sealing principle Soft
- Pilot pressure 3 bar ... 8 bar
- Duty cycle 100% in combination with holding current reduction
- On switching time 16 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Electrical connection 2-pin
- Maritime classification See certificate
- Standard nominal flow rate 300 l/min
- Reset method Mechanical spring
- Exhaust air function With flow control option
- Mounting position Any
- Flow direction Reversible
- Max. positive test pulse with 0 signal 1200 µs
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -5 °C ... 50 °C
- Type of mounting With through-hole
- Pneumatic connection 4 QS-6
- Seals material NBR
- Design Piston gate valve
- Operating pressure -0.9 bar ... 10 bar
- Type code CPE10
- Symbol 00991020
- Coil characteristics 24 V DC: 1.28 W
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Ambient temperature -5 °C ... 50 °C
- Pilot air port 12 M3
- Pneumatic connection 2 QS-6
- Note on materials RoHS-compliant
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
