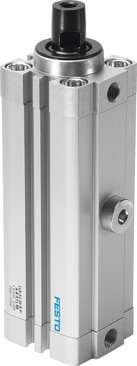

535488 Festo Pneumatic Actuators

535488 on Powermatic Associates
Festo

Part#:535488

Alt. Part#:CLR-32-10-L-P-A-B-K11-R8

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

linear/swivel clamp CLR-32-10-L-P-A-B-K11-R8 clamping system with linear and swivel motion 90 degrees to the left. standard hole pattern according to ISO 21287. With dust and weld spatter protection. Total stroke: 28 mm, Piston diameter: 32 mm, Piston rod

Product Details

  • Complete stroke
    28 mm
  • Swivel angle
    90 deg +/- 2 deg
  • Position sensing
    For proximity sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Effective clamping force at 2 bar
    111 N
  • Theoretical clamping force at 6 bar
    362 N
  • Scraper material
    PPS
  • Housing material
    Wrought aluminum alloy Smooth anodized
  • Type code
    CLR
  • Swivel direction
    Left
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Effective clamping force at 4 bar
    216 N
  • Product weight
    700 g
  • Cover material
    Wrought aluminum alloy Coated
  • Piston rod thread
    M8
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Symbol
    00991217
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Effective clamping force at 6 bar
    313 N
  • Type of mounting
    Optionally: With accessories
  • Seals material
    NBR TPE-U(PU)
  • Mounting position
    Any
  • Variants
    Welding splatter protection Dust protection
  • Operating pressure
    2 bar ... 10 bar
  • Max. clamping finger screw tightening torque
    24 Nm
  • Flange screws material
    Steel Galvanized
  • Material of cylinder barrel
    Wrought aluminum alloy Smooth anodized
  • Piston diameter
    32 mm
  • Clamping stroke
    10 mm
  • Design
    Piston Cylinder barrel
  • Mode of operation
    Double-acting
  • Ambient temperature
    -10 °C ... 80 °C
  • Pneumatic connection
    G1/8
  • Piston rod material
    Coated High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
