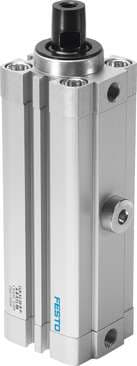

535495 Festo Pneumatic Actuators
Part#:535495
Alt. Part#:CLR-40-10-G-P-A-K11-R8
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description
linear/swivel clamp CLR-40-10-G-P-A-K11-R8 clamping system with linear motion, standard hole pattern according to ISO 21287. With dust and weld spatter protection. Total stroke: 28 mm, Piston diameter: 40 mm, Piston rod thread: M8, Clamping stroke: 10 mm,
Product Details
- Piston diameter 40 mm
- Design Piston Cylinder barrel
- Position sensing For proximity sensor
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 895 g
- Scraper material PPS
- Cover material Wrought aluminum alloy Coated
- Complete stroke 28 mm
- Clamping stroke 10 mm
- Operating pressure 2 bar ... 10 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Max. clamping finger screw tightening torque 24 Nm
- Type of mounting Optionally: With accessories
- Piston rod material Coated High-alloy stainless steel
- Type code CLR
- Mounting position Any
- Variants Welding splatter protection Dust protection
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Ambient temperature -10 °C ... 80 °C
- Theoretical clamping force at 6 bar 633 N
- Housing material Wrought aluminum alloy Smooth anodized
- Cushioning Elastic cushioning rings/pads at both ends
- Symbol 00991217
- Effective clamping force at 2 bar 176 N
- Effective clamping force at 6 bar 536 N
- Flange screws material Steel Galvanized
- Seals material NBR TPE-U(PU)
- Material of cylinder barrel Wrought aluminum alloy Smooth anodized
- Piston rod thread M8
- Swivel direction Straight
- Mode of operation Double-acting
- Effective clamping force at 4 bar 355 N
- Pneumatic connection G1/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
