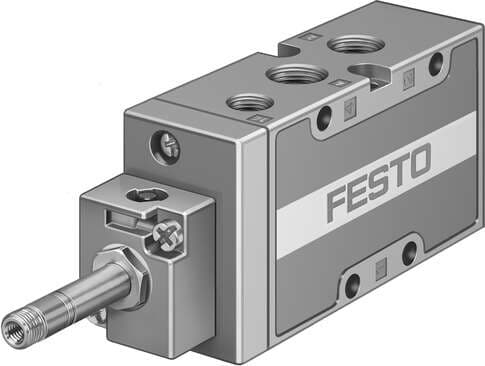

535928 Festo Directional Control Valves
Part#:535928
Alt. Part#:MFH-5-1/4-L-S-B-EX
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve MFH-5-1/4-L-S-B-EX With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 32 mm, Standard nominal flow rate: 1600 l
Product Details
- Pilot air port 12 G1/8
- Pneumatic connection 4 G1/4
- Valve function 5/2, monostable
- Actuation type Electrical
- Reset method Pneumatic spring
- Exhaust air function With flow control option
- Symbol 00991026
- Switching time off 42 ms
- Max. positive test pulse with 0 signal 2200 µs
- Explosive ambient temperature -5°C <= Ta <= +40°C
- Temperature of medium -10 °C ... 60 °C
- Electrical connection Via F coil, to be ordered separately
- Standard nominal flow rate 1600 l/min
- Nominal width 10 mm
- Width dimension 33 mm
- Pilot pressure 3 bar ... 10 bar
- C value 6.35 l/sbar
- Max. negative test pulse on 1 signal 3700 µs
- ATEX category for dust II 2D
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -5 °C ... 40 °C
- Pilot exhaust air port 84 M5
- Pneumatic connection 5 G1/4
- Width 32 mm
- Degree of protection IP65
- Sealing principle Soft
- Manual override Non-detenting
- Max. switching frequency 3 Hz
- ATEX category gas II 2G
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting With through-hole
- Pilot air port 14 G1/8
- Pneumatic connection 3 G1/4
- Lap Overlap
- Pneumatic working port G1/4
- Design Piston gate valve
- Mounting position Any
- Flow direction Reversible
- b-value 0.38
- Type of ignition protection for gas Ex h IIC T4 Gb
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Storage temperature -40 °C ... 60 °C
- Pneumatic connection 1 G1/4
- Note on materials RoHS-compliant
- Operating pressure -0.9 bar ... 10 bar
- Type code MFH
- Pilot air supply port External
- Type of control Pilot-controlled
- On switching time 23 ms
- Type of (ignition) protection for dust Ex h IIIC T130°C Db
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Product weight 380 g
- Pneumatic connection 2 G¼
- Seals material NBR
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
