535971 Festo Directional Control Valves
Part#:535971
Alt. Part#:MFH-5/3G-D-3-C-EX
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

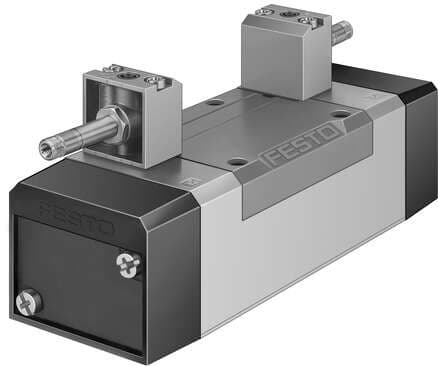

solenoid valve MFH-5/3G-D-3-C-EX With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function: 5/3 closed, Type of actuation: electrical, Width: 65 mm, Standard nominal flow rate: 4100 l/min,
Product Details
- Width 65 mm
- Standard nominal flow rate 4100 l/min
- Operating pressure 3 bar ... 10 bar
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- Flow direction Non-reversible
- ATEX category for dust II 2D
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Noise level 85 dB(A)
- Pilot exhaust air port 84 M5
- Pneumatic connection 3 Sub-base, size 3 as per ISO 5599-1
- Pneumatic connection 4 Sub-base, size 3 as per ISO 5599-1
- Actuation type Electrical
- Operating voltage Via solenoid coil, to be ordered separately
- Degree of protection IP65
- Sealing principle Soft
- ISO code 356
- Symbol 00991080
- Max. positive test pulse with 0 signal 2200 µs
- ATEX category gas II 2G
- Explosive ambient temperature -5°C <= Ta <= +40°C
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Temperature of medium -10 °C ... 60 °C
- Product weight 1040 g
- Type of mounting On sub-base With through-hole and screw
- Pneumatic connection 1 Sub-base, size 3 as per ISO 5599-1
- Seals material HNBR NBR
- Design Piston gate valve
- Width dimension 71 mm
- Type code MFH
- Manual override Detenting via accessory Non-detenting
- On switching time 36 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Ambient temperature -5 °C ... 40 °C
- Pneumatic connection 2 Sub-base, size 3 as per ISO 5599-1
- Pilot exhaust air port 82 M5
- Note on materials RoHS-compliant
- Pneumatic working port Sub-base, size 3 as per ISO 5599-1 G1/2
- Reset method Mechanical spring
- Conforms to standard ISO 5599-1
- Pilot air supply port Internal
- Type of ignition protection for gas Ex h IIC T4 Gb
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Electrical connection Via F coil, to be ordered separately
- Pneumatic connection 5 Sub-base, size 3 as per ISO 5599-1
- Housing material Die-cast aluminum
- Lap Overlap
- Valve function 5/3, closed
- Nominal width 14.5 mm
- Mounting position Any
- Switching time off 77 ms
- Max. negative test pulse on 1 signal 3700 µs
- Type of (ignition) protection for dust Ex h IIIC T105°C Db
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
