537709 Festo Retroreflective Sensors

537709 on Powermatic Associates
Festo

Part#:537709

Alt. Part#:SOEG-E-M18-NA-K-2L

Manufacturer:Festo

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

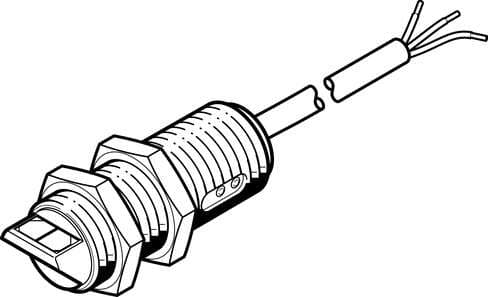

receiver SOEG-E-M18-NA-K-2L Round design Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE

Product Details

  • Conforms to standard
    EN 60947-5-2
  • Note on materials
    Free of copper and PTFE
  • Max. output current
    200 mA
  • Residual ripple
    20 %
  • Tightening torque
    20 Nm
  • Degree of protection
    IP65 IP67
  • Measured variable
    Position
  • Max. switching frequency
    1000 Hz
  • Short-circuit protection
    Pulsed
  • Electrical connection
    4-wire Cable
  • Size
    M18x1
  • Material of union nut
    Brass Chrome-plated
  • Switching status indication
    LED yellow
  • Ambient temperature with flexible cable installation
    -5 °C ... 55 °C
  • Symbol
    00991710
  • Measuring principle
    Optoelectronic
  • Ambient temperature
    -25 °C ... 55 °C
  • Voltage drop
    ≤ 2 V
  • Material of cable sheath
    TPE-U(PUR)
  • Housing material
    Brass Chrome-plated
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Type code
    SOEG
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Working range
    20000 mm
  • Switching element function
    Antivalent
  • DC operating voltage range
    10 V ... 36 V
  • Idle current
    10 mA
  • Type of mounting
    With lock nut
  • Function reserve indication
    LED green
  • Design
    Round
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Method of measurement
    Through-beam sensor Receiver
  • Switching output
    NPN
  • Reverse polarity protection
    for all electrical connections
  • Cable length
    2.5 m
  • Product weight
    115 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

537709 Related Documents

537709 DataSheet.pdf
