543333 Festo Pneumatic Components

543333 on Powermatic Associates
Festo

Part#:543333

Alt. Part#:VMPA1-FB-EMG-D2-8

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

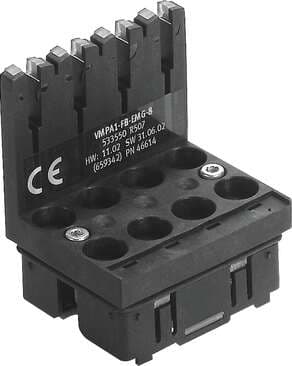

electronics module VMPA1-FB-EMG-D2-8 Diagnosis: (* Condition Monitoring, * Wire break per valve coil, * Short circuit of valves, * Undervoltage, valves), Max. number of valve positions: 4, Max. number of solenoid coils: 8, Intrinsic current consumption at

Product Details

  • Diagnostics
    Condition monitoring Undervoltage of pneumatic valves
  • Nominal pick-up current per solenoid coil
    58 mA to 24 ms
  • Type code
    VMPA1
  • Intrinsic current consumption at operating voltage
    8 mA
  • Max. no. of solenoid coils
    8
  • Nominal current with current reduction
    9 mA after 24 ms
  • Max. no. of valve positions
    4
  • Intrinsic current consumption at load voltage
    23 mA
  • Product weight
    20 g
  • Housing material
    POM
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress (when installed)
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

543333 Related Documents

543333 DataSheet.pdf
