546425 Festo Compressed Air Preparation Units

546425 on Powermatic Associates
Festo

Part#:546425

Alt. Part#:LFR-D-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

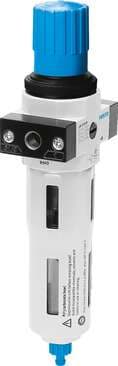

filter regulator LFR-D-MIDI With metal bowl guard. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

Product Details

  • Max. condensate volume
    42.983 ml
  • Max. pressure hysteresis
    0.207 bar
  • Ambient temperature
    -10 °C ... 60 °C
  • Type code
    LFR
  • Grade of filtration
    40 µm
  • Pressure regulation range
    0.476 bar ... 12.411 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Optionally: With accessories
  • Series
    D
  • Condensate drain
    Manually rotating
  • Operating pressure
    0.951 bar ... 16.547 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc
  • Actuator lock
    Rotary knob with detent
  • Design
    Filter regulator without pressure gauge
  • Pressure gauge
    G1/4 prepared
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
  • Note on materials
    RoHS-compliant
  • Size
    Midi
  • Mounting position
    Vertical +/- 5°
  • Bowl guard
    Metal bowl guard
  • Standard nominal flow rate
    13792.37 l/min
  • Storage temperature
    -10 °C ... 60 °C
  • Product weight
    912.87 g
  • Material of bowl
    PC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
