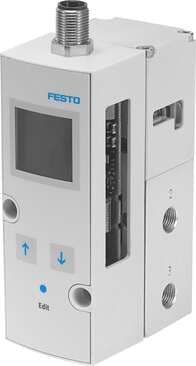

558347 Festo Proportional Valves

Product Details

• Type code
  VPPM
• Mounting position
  Any
• Reverse polarity protection
  for all electrical connections
• Display type
  Back-lit LCD
• Standard nominal flow rate
  900 l/min
• Max. electrical power consumption
  7 W
• Degree of protection
  IP65
• Temperature coefficient
  0.04 %/K
• Pneumatic connection 1
  Sub-base
• Note on materials
  RoHS-compliant
• Nominal width pressurization
  6 mm
• Safety instructions
  VPPM safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Pressure regulation range
  0.06 bar ... 6 bar
• Residual ripple
  10 %
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Ambient temperature
  0 °C ... 50 °C
• Linearity error FS
  2 %
• Pneumatic connection 3
  Sub-base
• Design
  Pilot-controlled diaphragm regulator
• Reset method
  Mechanical spring
Inlet pressure 1
0 bar ... 8 bar
DC operating voltage range
21.6 V ... 26.4 V
Switching output
NPN
Information on operating and pilot media
Operation with oil lubrication not possible
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Type of mounting
Optionally: With accessories
KC characters
KC EMC
Actuation type
Electrical
Sealing principle
Soft
Symbol
00995303
Valve function
3-way proportional pressure control valve
Max. pressure hysteresis
0.03 bar
Duty cycle
100%
Analog input signal range
0 - 10 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Certification
RCM compliance mark c UL us - Listed (OL)
Electrical connection
8-pin Plug
Housing material
Wrought aluminum alloy Anodized
Exhaust nominal width
4.5 mm
Short-circuit protection
For all electrical connections
Type of control
Pilot-controlled
Max. current consumption
300 mA
Analog output signal range
0 - 10 V
Temperature of medium
10 °C ... 50 °C
Product weight
400 g
Repetition accuracy FS
0.5 %
Pneumatic connection 2
Sub-base
