562890 Festo Pneumatic Valves Accessories

562890 on Powermatic Associates
Festo

Part#:562890

Alt. Part#:VACC-S13-18-A1-1U

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

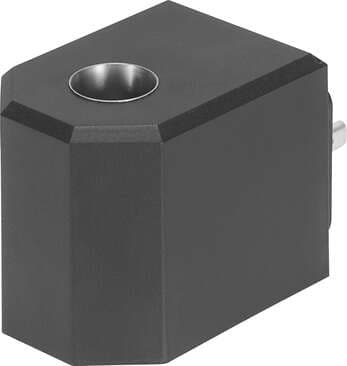

solenoid coil VACC-S13-18-A1-1U for armature system F19, connection pattern type A, to EN 175 301, 24 V DC and AC. Type of actuation: electrical, Assembly position: Any, Switching position indicator: No, Duty cycle: 100 %, Insulation class: H

Product Details

  • Actuation type
    Electrical
  • Duty cycle
    100%
  • Degree of protection
    IP65
  • Mounting position
    Any
  • Coil characteristics
    24 V DC: 1.8 W 24 V AC: 40/65 Hz, power 1.8 VA
  • Product weight
    210 g
  • Solenoid coil material
    PA UP
  • Insulation class
    H
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Ambient temperature
    -20 °C ... 60 °C
  • Type code
    VACC
  • Switching position indication
    no
  • Permissible voltage fluctuations
    -15 % / +10 %
  • Electrical connection
    Form A as per EN 175301-803
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
