562892 Festo Pneumatic Valves Accessories

562892 on Powermatic Associates
Festo

Part#:562892

Alt. Part#:VACC-S13-18-A1-3U

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

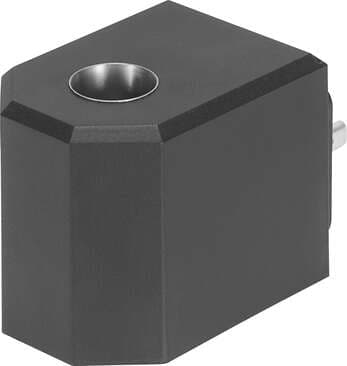

solenoid coil VACC-S13-18-A1-3U for armature system F19, connection pattern type A, to EN 175 301, 230 V DC and AC. Type of actuation: electrical, Assembly position: Any, Switching position indicator: No, Duty cycle: 100 %, Insulation class: H

Product Details

  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Actuation type
    Electrical
  • Coil characteristics
    230 V DC: 1.8 W 230 V AC: 40/65 Hz, power 1.8 VA
  • Degree of protection
    IP65
  • Type code
    VACC
  • Permissible voltage fluctuations
    -15 % / +10 %
  • Ambient temperature
    -20 °C ... 60 °C
  • Mounting position
    Any
  • Duty cycle
    100%
  • Product weight
    210 g
  • Solenoid coil material
    PA UP
  • Switching position indication
    no
  • Insulation class
    H
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Electrical connection
    Form A as per EN 175301-803

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

562892 Related Documents

562892 DataSheet.pdf
