567770 Festo Pneumatic Fittings

567770 on Powermatic Associates
Festo

Part#:567770

Alt. Part#:QB-1/2-5/16-U

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 4 left in stock. Order Now!

Jun 14, 2026

Product description

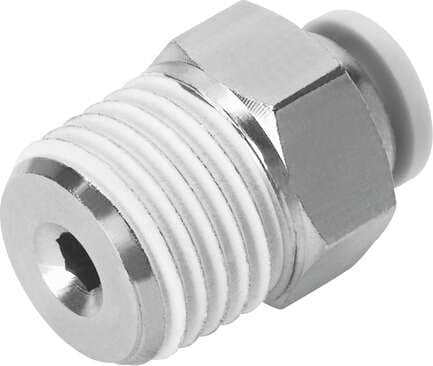

push-in fitting QB-1/2-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

Product Details

  • Type code
    QB
  • Temperature-dependent operating pressure
    -0.951 bar ... 9.997 bar
  • Ambient temperature
    0 °C ... 60 °C
  • Releasing ring color
    Gray
  • Material of tube retaining claw
    High-alloy stainless steel
  • Size
    Standard
  • Design
    Push-pull principle
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 5/16"
  • Material of tubing seal
    NBR
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Nominal width
    6.401 mm
  • Operating pressure for entire temperature range
    -0.951 bar ... 9.997 bar
  • Product weight
    59.705 g
  • Max. tightening torque
    28 Nm
  • Housing material
    Brass, nickel-plated
  • Type of seal on screwed trunnion
    Coating
  • Pneumatic connection 1
    External thread NPT1/2-14
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Releasing ring material
    POM
  • Material of threaded seal
    PTFE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 567770 on Powermatic Associates is $4.57. Order now.

567770 Related Documents

567770 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

153003 on Powermatic Associates

153003

Festo

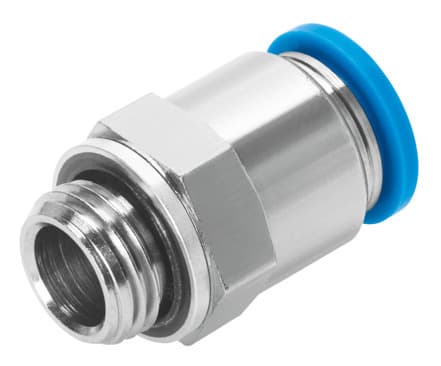

push-in fitting QS-1/4-6 male thread with external hexagon. Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10
