574250 Festo Directional Control Valves

574250 on Powermatic Associates
Festo

Part#:574250

Alt. Part#:VUWG-L10A-M52-M-M3

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

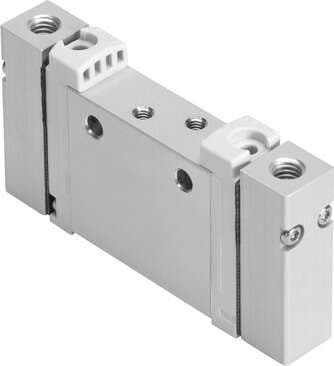

pneumatic valve VUWG-L10A-M52-M-M3 Valve function: 5/2 monostable, Type of actuation: pneumatic, Valve size: 10 mm, Standard nominal flow rate: 80 l/min, Operating pressure: -0,9 - 8 bar

Product Details

  • Symbol
    00991029
  • On switching time
    5 ms
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 1
    M3
  • Pneumatic connection 5
    M3
  • Valve function
    5/2, monostable
  • Reset method
    Mechanical spring
  • Pneumatic working port
    M3
  • Sealing principle
    Soft
  • Pilot pressure
    3 bar ... 10 bar
  • Temperature of medium
    -5 °C ... 50 °C
  • Ambient temperature
    -5 °C ... 60 °C
  • Pneumatic connection 3
    M3
  • Seals material
    HNBR NBR
  • Actuation type
    Pneumatic
  • Design
    Piston gate valve
  • Type code
    VUWG
  • Mounting position
    Any
  • Flow direction
    Reversible
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pilot air port 14
    M5
  • Note on materials
    RoHS-compliant
  • Lap
    Overlap
  • Standard nominal flow rate
    80 l/min
  • Operating pressure
    -0.9 bar ... 8 bar
  • Exhaust air function
    With flow control option
  • Switching time off
    16 ms
  • Suitability for vacuum
    yes
  • Type of mounting
    Optionally: With through-hole
  • Pneumatic connection 2
    M3
  • Housing material
    Aluminum Anodized
  • Valve size
    10 mm
  • Width dimension
    10.5 mm
  • Manual override
    None
  • Type of control
    Direct
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    34 g
  • Pilot air port 12
    M5
  • Pneumatic connection 4
    M3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
