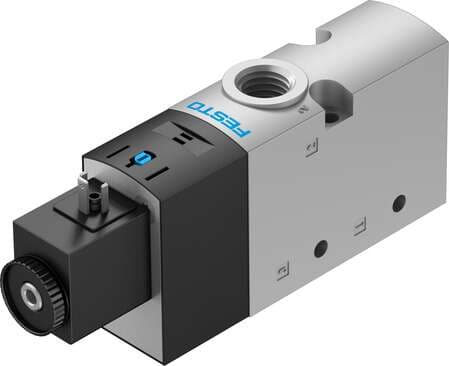

575589 Festo Directional Control Valves

Product Details

• Maritime classification
  See certificate
• Standard nominal flow rate
  2300 l/min
• Pneumatic working port
  G3/8
• Type code
  VUVS
• Nominal width
  9.4 mm
• Flow direction
  Non-reversible
• Switching time off
  57 ms
• Operating pressure
  2.5 bar ... 10 bar
• Degree of protection
  IP65 as per IEC 60529
• Mounting position
  Any
• Symbol
  00991140
• On switching time
  15 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Note on materials
  RoHS-compliant
• Material of screws
  Steel, nickel-plated
• Valve size
  31 mm
• Design
  Piston gate valve
• Certification
  c UL us - Recognized (OL)
Exhaust air function
With flow control option
Pilot air supply port
Internal
b-value
0.3
Max. negative test pulse on 1 signal
3600 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-10 °C ... 60 °C
Venting hole connection
Not ducted
Pneumatic connection 1
G3/8
Piston slide material
Wrought aluminum alloy
Valve function
3/2, open, monostable
Actuation type
Electrical
Reset method
Mechanical spring
Sealing principle
Soft
Type of control
Pilot-controlled
Duty cycle
100%
Certificate issuing authority
DNVGL-TAA000011J
Ambient temperature
-10 °C ... 60 °C
Type of mounting
Optionally: With through-hole
Electrical connection
Form B
Lap
Overlap
Operating voltage
24V DC
Manual override
Detenting Non-detenting
C value
9.2 l/sbar
Permissible voltage fluctuations
+/- 10 %
Product weight
405 g
Pneumatic connection 2
G3/8
Seals material
HNBR NBR
Max. positive test pulse with 0 signal
2000 µs
Coil characteristics
24 V DC: 3.3 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M5
Pneumatic connection 3
G3/8
Housing material
Die-cast aluminum Painted
