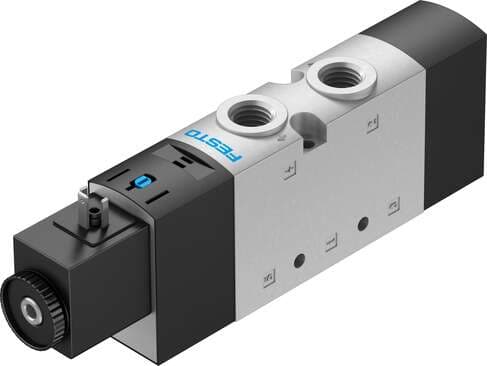

575512 Festo Directional Control Valves
Part#:575512
Alt. Part#:VUVS-L25-M52-MZD-G14-F8-1C1
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve VUVS-L25-M52-MZD-G14-F8-1C1 Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 26,5 mm, Standard nominal flow rate: 1300 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- C value 5.3 l/sbar
- Valve function 5/2, monostable
- Standard nominal flow rate 1300 l/min
- Certification c UL us - Recognized (OL)
- Exhaust air function With flow control option
- Pilot air supply port External
- Pilot pressure 2.5 bar ... 10 bar
- Switching time off 47 ms
- Max. positive test pulse with 0 signal 2000 µs
- Permissible voltage fluctuations +/- 10 %
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Ambient temperature -10 °C ... 60 °C
- Type of mounting Optionally: With through-hole
- Pneumatic connection 1 G1/4
- Pneumatic connection 3 G1/4
- Piston slide material Wrought aluminum alloy
- Material of screws Steel, galvanized
- Operating voltage 24V DC
- Design Piston gate valve
- Degree of protection IP65 as per IEC 60529
- Coil characteristics 24 V DC: 3.3 W
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Electrical connection Form C
- Pilot air port 14 M5
- Seals material HNBR NBR
- Valve size 26.5 mm
- Operating pressure -0.9 bar ... 10 bar
- Sealing principle Soft
- Type of control Pilot-controlled
- Symbol 00991025
- On switching time 12 ms
- Max. negative test pulse on 1 signal 3600 µs
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 363 g
- Pilot exhaust air port 84 M5
- Pneumatic connection 5 G1/4
- Housing material Die-cast aluminum Painted
- Actuation type Electrical
- Reset method Mechanical spring
- Type code VUVS
- Manual override Detenting Non-detenting
- b-value 0.4
- Duty cycle 100%
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -10 °C ... 60 °C
- Venting hole connection Not ducted
- Pneumatic connection 2 G¼
- Pneumatic connection 4 G1/4
- Note on materials RoHS-compliant
- Lap Overlap
- Pneumatic working port G1/4
- Nominal width 6.9 mm
- Mounting position Any
- Flow direction Reversible
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
