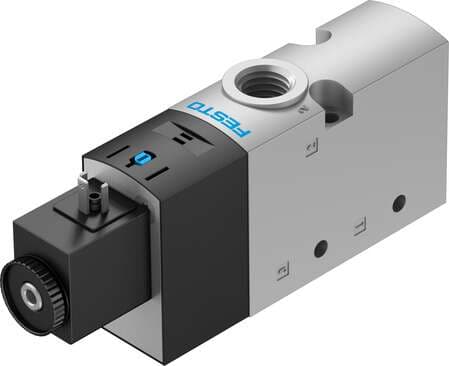

575573 Festo Directional Control Valves

Product Details

• Operating voltage
  24V DC
• Certification
  c UL us - Recognized (OL)
• Valve function
  3/2, closed, monostable
• Standard nominal flow rate
  2300 l/min
• Type code
  VUVS
• Mounting position
  Any
• C value
  9.8 l/sbar
• Duty cycle
  100%
• Max. negative test pulse on 1 signal
  3600 µs
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Electrical connection
  Form B
• Note on materials
  RoHS-compliant
• Lap
  Overlap
• Pneumatic working port
  G3/8
• Degree of protection
  IP65 as per IEC 60529
• Reset method
  Pneumatic spring
• Manual override
  Detenting Non-detenting
• Switching time off
  36 ms
• Permissible voltage fluctuations
  +/- 10 %
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M5
Pilot air port 12
G1/8
Pneumatic connection 1
G3/8
Piston slide material
Wrought aluminum alloy
Maritime classification
See certificate
Valve size
31 mm
Design
Piston gate valve
Nominal width
9.4 mm
Sealing principle
Soft
Pilot air supply port
External
Symbol
00991406
b-value
0.3
Coil characteristics
24 V DC: 3.3 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Product weight
405 g
Pneumatic connection 2
G3/8
Material of screws
Steel, nickel-plated
Actuation type
Electrical
Operating pressure
-0.9 bar ... 10 bar
Flow direction
Reversible
Max. positive test pulse with 0 signal
2000 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-10 °C ... 60 °C
Venting hole connection
Not ducted
Pneumatic connection 3
G3/8
Seals material
HNBR NBR
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Pilot pressure
2.5 bar ... 10 bar
On switching time
19 ms
Certificate issuing authority
DNVGL-TAA000011J
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-10 °C ... 60 °C
Type of mounting
Optionally: With through-hole
Housing material
Die-cast aluminum Painted
