576419 Festo Pneumatic Valves Accessories
Part#:576419
Alt. Part#:VABM-B10-20S-G14-4
Manufacturer:Festo
Category:Pneumatic Valves Accessories
Product Lifecycle:Active
Product description

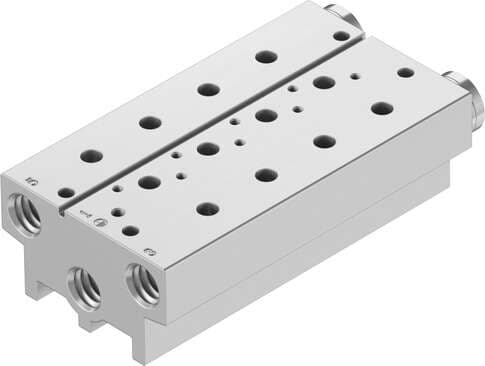

manifold block VABM-B10-20S-G14-4 Grid dimension: 22 mm, Assembly position: Any, Max. number of valve positions: 4, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Product weight: 535 g
Product Details
- Type of mounting With through-hole
- Max. no. of valve positions 4
- Pneumatic connection 5 G1/4
- Type code VABM
- Product weight 535 g
- Note on materials RoHS-compliant
- Width dimension 22 mm
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pneumatic connection 3 G1/4
- Mounting position Any
- Pneumatic connection 1 G1/4
- Manifold rail material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
