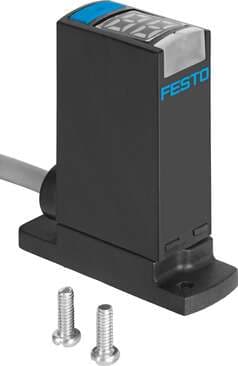

8001444 Festo Pressure Sensors

Product Details

• Symbol
  00995430
• Measured variable
  Relative pressure
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• ADC resolution
  10 bit
• Temperature co-efficient in ± %FS/K
  0.05 %FS/K
• Display range start value
  0 %FS
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, SIO mode support
  Yes
• IO-Link®, minimum cycle time
  3 ms
• Mounting position
  Any
• Sealing ring material
  NBR
• Protection against tampering
  PIN code
• Type code
  SPAE
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Certificate issuing authority
  UL E322346
• Pressure measuring range initial value
  0 bar
• Temperature of medium
  0 °C ... 50 °C
• Repetition accuracy in ± %FS
  0.3 %FS
• Switching function
  Freely programmable
• Display range end value
  99 %FS
IO-Link®, profile
Smart sensor profile
IO-Link®, communication mode
COM2 (38,4 kBd)
Reverse polarity protection
for all electrical connections
Cable length
2.5 m
Pneumatic connection
Flange
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Pressure measuring range end value
-1 bar
Accuracy in ± % FS
1.5 %FS
Switching element function
N/C contact Switchable
Short-circuit protection
yes
IO-Link®, process data width OUT
0 Byte
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
Electrical connection
3-wire Open end
Displayable unit(s)
%FS
Setting options
IO-Link® Via display and pushbuttons
Setting range threshold value
1 % ... 98 %
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Piezoresistive pressure sensor with display
Max. overload pressure
5 bar
Ambient temperature
0 °C ... 50 °C
Switching output
PNP/NPN switchable
Protocol
IO-Link®
IO-Link®, port class
A
IO-Link®, data memory required
500 byte
Product weight
40 g
Housing material
PA-reinforced
Switching status indication
LED yellow
KC characters
KC EMC
Information on operating and pilot media
Operation with oil lubrication possible
Max. output current
100 mA
IO-Link®, protocol version
Device V 1.1
IO-Link®, process data width IN
2 Byte
DC operating voltage range
18 V ... 30 V
Type of mounting
With through-hole and screw
Display type
LED display 2-digit
Degree of protection
IP40
