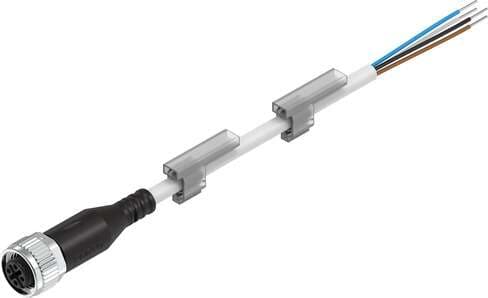

8003134 Festo Cable Assemblies
Part#:8003134
Alt. Part#:NEBU-M12G5-K-7-LE4
Manufacturer:Festo
Category:Cable Assemblies
Product Lifecycle:Active
Product description
connecting cable NEBU-M12G5-K-7-LE4 Conforms to standard: (* Core colours and connection numbers to EN 60947-5-2, * EN 61076-2-101), Cable identification: with 2x label holders, Product weight: 197 g, Electrical connection 1, function: Field device side,
Product Details
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Electrical connection 1, function Field device end
- Electrical connection 1, cable outlet Straight
- Electrical connection 2, number of pins/wires 4
- Current rating at 40°C 4 A
- Cable length 7 m
- Cable design 4 x 0.25 mm²
- Nominal conductor cross section 0.25 mm²
- CE marking (see declaration of conformity) As per EU low voltage directive As per EU RoHS directive
- Note on materials Free of copper and PTFE Free of phosphoric acid ester
- Material of screw-type lock Brass, nickel-plated
- Insulating sheath material PP
- Conforms to standard Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101
- Electrical connection 1, design Round
- Electrical connection 1, type of mounting Screw-type lock
- Electrical connection 2, occupied pins/wires 4
- Surge resistance 2.5 kV
- Connector cable test conditions Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
- Cable diameter tolerance ± 0.1 mm
- Special features Oil-resistant
- Contamination level 3
- Material of cable sheath TPE-U(PUR)
- Housing colour Black
- Type code NEBU
- Product weight 197 g
- Electrical connection 1, number of pins/wires 5
- Electrical connection 2, connection technology Open end
- Operating voltage range AC 0 V ... 250 V
- Bending radius, flexible cable installation 46 mm
- Degree of protection IP65 IP69K
- Ambient temperature -25 °C ... 70 °C
- Housing material TPE-U(PUR)
- Electrical connection 1, connection type Socket
- Electrical connection 2, function Control side
- DC operating voltage range 0 V ... 250 V
- Bending radius, fixed cable installation 14 mm
- Note on degree of protection In mounted state
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Material of pin contacts Copper alloy, gold-plated
- Cable designation With 2x label holders
- Electrical connection 1, connection technology M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, occupied pins/wires 4
- Electrical connection for input 1, connection pattern 00991861
- Electrical connection 2, connection type Cable
- Cable characteristic Standard
- Cable diameter 4.5 mm
- Ambient temperature with flexible cable installation -5 °C ... 70 °C
- Color cable sheath Gray
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8003134 Related Documents
Similar products from: Festo Cable Assemblies
Manufacturer warranty
8003134 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 8003134 with other Cable Assemblies products
Explosion prevention and ...
Electrical connection 1, ...
Electrical connection 1, ...
Electrical connection 2, ...
Current rating at 40°C
Cable length
Cable design
Nominal conductor cross s...
CE marking (see declarati...
Note on materials
Selected product
8003134
Festo
connecting cable NEBU-M12G5-K-7-LE4 Conforms to standard: (* Core colours and connection numbers to ...
Explosion prevention and protectionObserve the information on t...
Electrical connection 1, functionField device end
Electrical connection 1, cable outletStraight
Electrical connection 2, number of pins/wires4
Current rating at 40°C4 A
Cable length7 m
Cable design4 x 0.25 mm²
Nominal conductor cross section0.25 mm²
CE marking (see declaration of conformity)As per EU low voltage direct...
Note on materialsFree of copper and PTFE Free...
550326
Festo
connecting cable NEBU-M12G5-K-2.5-LE4 For SOPA air gap sensor. Conforms to standard: (* Core colours...
Explosion prevention and protectionObserve the information on t...
Electrical connection 1, functionField device end
Electrical connection 1, cable outletStraight
Electrical connection 2, number of pins/wires-
Current rating at 40°C-
Cable length-
Cable design-
Nominal conductor cross section-
CE marking (see declaration of conformity)-
Note on materials-
541333
Festo

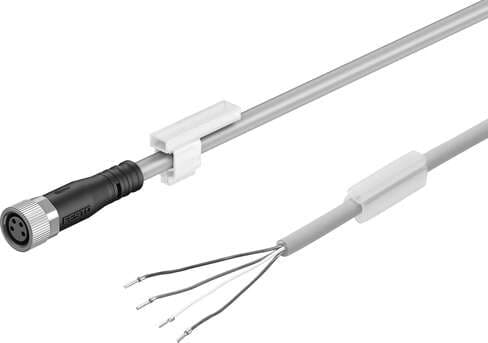

connecting cable NEBU-M8G3-K-2.5-LE3 for proximity sensors, position transmitter, pressure switch, f...
