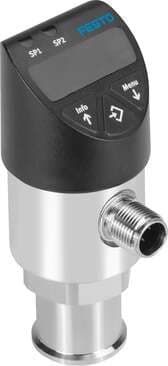

8022797 Festo Pressure Sensors

Product Details

• Rise time
  3 ms
• Product weight
  230 g
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Measured variable
  Relative pressure
• Pressure measuring range end value
  6 bar
• Repetition accuracy in ± %FS
  0.15 %FS
• Reverse polarity protection
  for operating voltage
• Housing material
  ABS High-alloy stainless steel
• Protection against tampering
  PIN code
• Setting range hysteresis
  0.5 % ... 99.5 %
• Symbol
  00995378
• Operating medium
  Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
• Switching function
  Freely programmable
• Electrical connection
  5-pin Round design
• Displayable unit(s)
  MPa psi
• Setting options
  Via display and pushbuttons
• Pressure measuring range initial value
  0 bar
• Temperature of medium
  -20 °C ... 85 °C
• Switching element function
  Switchable
• Analog output
  0 - 10 V
Mounting position
Any
Type of mounting
With internal thread With accessories
Display type
4-character alphanumeric LED display
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Certification
RCM compliance mark c UL us - Listed (OL)
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Method of measurement
Piezoresistive pressure sensor
Accuracy in ± % FS
1 %FS
Max. output current
250 mA
DC operating voltage range
15 V ... 35 V
Switching status indication
LED red
Degree of protection
IP65 IP67
Type code
SPAW
Max. overload pressure
12 bar
Ambient temperature
0 °C ... 80 °C
Switching output
2xPNP
Short-circuit protection
yes
Pneumatic connection
Internal thread G1/4
Materials in contact with the media
High-alloy stainless steel
Setting range threshold value
0.5 % ... 100 %
